Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing

Brand Name : FSK / FAG / NSK / KOYO / NTN / OEM Brand

Model Number : EE9

Certification : ISO9001-2000 / CE / ROHS / UL / SGS

Place of Origin : CHINA

MOQ : 1 pcs

Price : Talk in the letter

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 5-7Days After Details Confirmed

Packaging Details : 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING

Model No. : EE9

Size30 : 9.525 X 22.225 X 5.558mm

Weight : 0.009kg

Seal : Open Type without Seal

Row : Single Row

Material : Gcr15 Chrome Steel / Stainless Steel

Contact Now

Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing


Bearings Specification :

Model Number

EE9

Part Name

Deep Groove Ball Bearing

Brand

FSK / FAG / NSK / KOYO / NTN / OEM Brand
Material Gcr15 Chrome Steel / Stainless Steel

Dimensions(mm)(d*D*b)

25.4 X 50.8 X 9.525 mm

Weight / Mass ( KG )

0.081 kg

HS Code

8482100000

Original Country Show

 CHINA

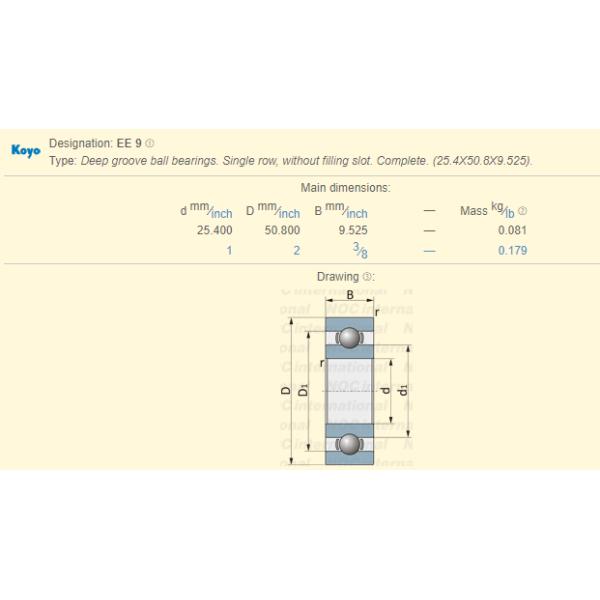

Bearings Detailed Pictures :
Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing
Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing
Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing
Single Row EE6 / EE8 / EE9 Mini Size Deep Groove Ball Bearing , EE Series Inch Bearing

Part Catalog of Inched Ball Bearings

Bearing Numbers Boundary dimensions(mm) Load rating N Weightkg
Id Od Width B
Bearing Bearing d D OPEN Closed Cr Cor
EE0 3.175 12.7 4.366 4.366 715 283 0.0033
EE1 4.762 12.7 3.969 4.978 1310 485 0.0029
EE2 KLNJ-1/4 6.35 19.05 5.556 7.144 2410 911 0.01
EE3 KLNJ-3/8 9.525 22.225 5.556 7.144 3350 1410 0.0177
EE4 KLNJ-1/2 12.7 28.575 6.35 7.938 5110 2380 0.021
EE5 KLNJ-5/8 15.875 34.925 7.144 8.731 6000 3250 0.0367
EE6 KLNJ-3/4 19.05 41.275 7.938 11.112 8370 4520 0.063
EE7 19.05 44.45 9.525 12.7 9390 5020 0.09
EE8 KLNJ-7/8 22.225 47.625 9.525 12.7 10060 5920 0.097
EE9 KLNJ-1 25.4 50.8 9.525 12.7 10060 5920 0.107
EE10 KLNJ-1-1/8 28.575 53.975 9.525 12.7 11900 7460 0.122
EE11 KLNJ-1-1/4 31.75 57.15 9.525 12.7 13230 8300 0.125
EE12 KLNJ-1-3/8 34.925 63.5 11.112 14.288 16210 10420 0.165
EE13 KLNJ-1-1/2 38.1 66.675 11.112 14.288 17030 11700 0.176

The Other Bearings We Do

Ball Bearing Deep Groove Ball Bearing 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
160 **(70001 )
Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry.
